Enhancements

9.1.0

Released 9-May-2025

Release Notes

Import and Export

9.1.0_PLA_export_dxf

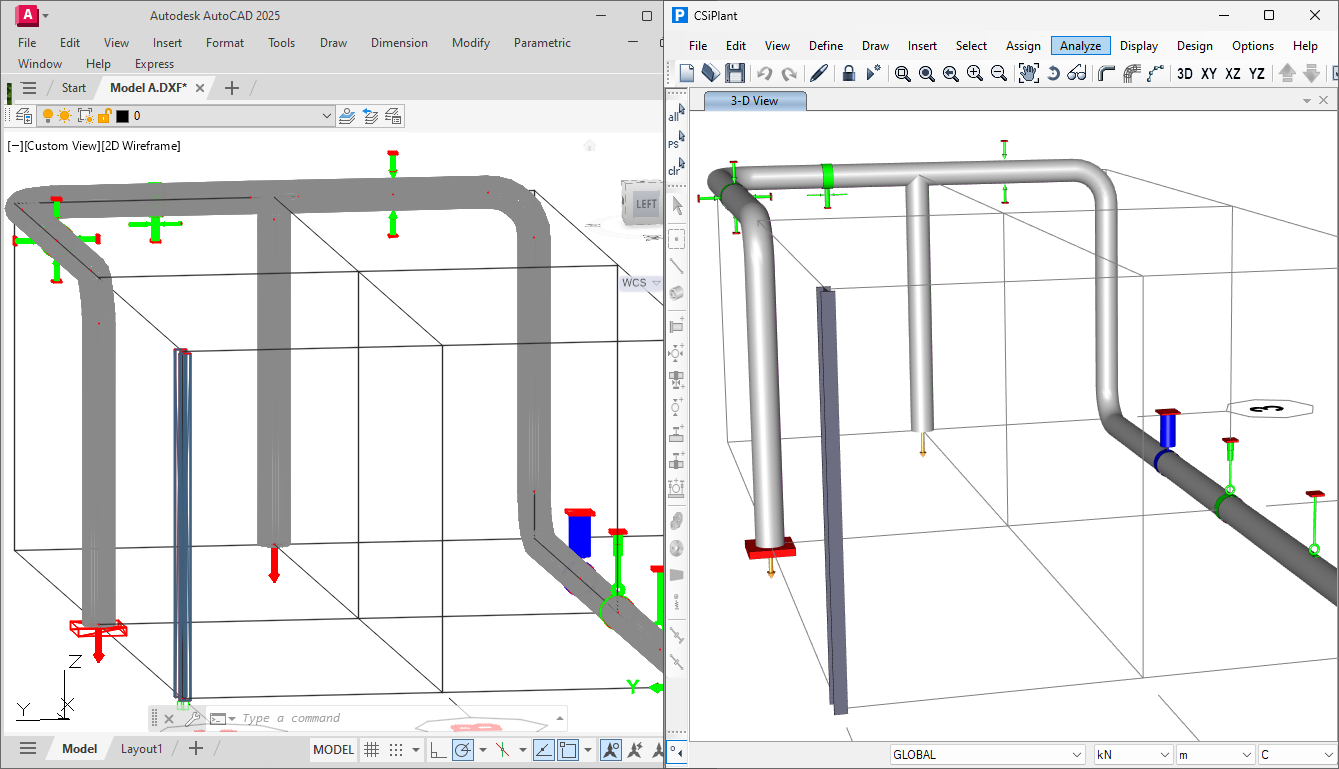

CSiPlant files can now be exported as AutoCAD .dxf files and can be opened in nearly all CAD programs

Analysis

9.1.0_PLA_p-delta_large_displacements

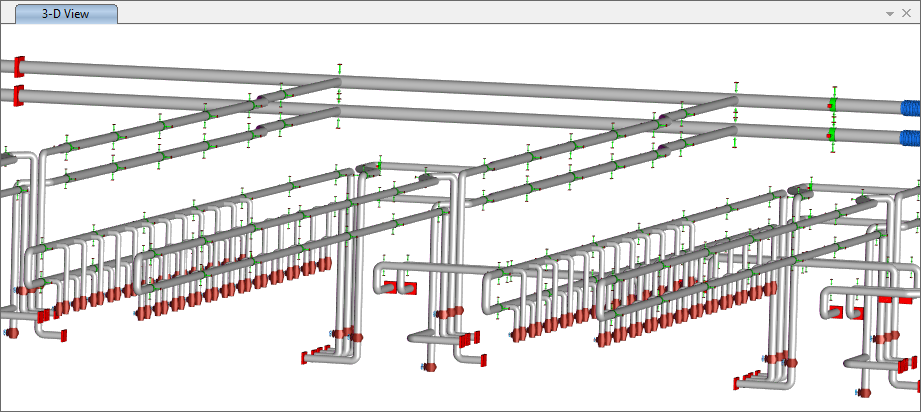

The rotation of link-element local axes with large displacements is now controlled by the P-delta factors defined for the link property. This new behavior enhances behavior for nonlinear static, direct-integration, and staged-construction load cases where the geometric nonlinearity parameter has been set to "P-Delta plus Large Displacements".

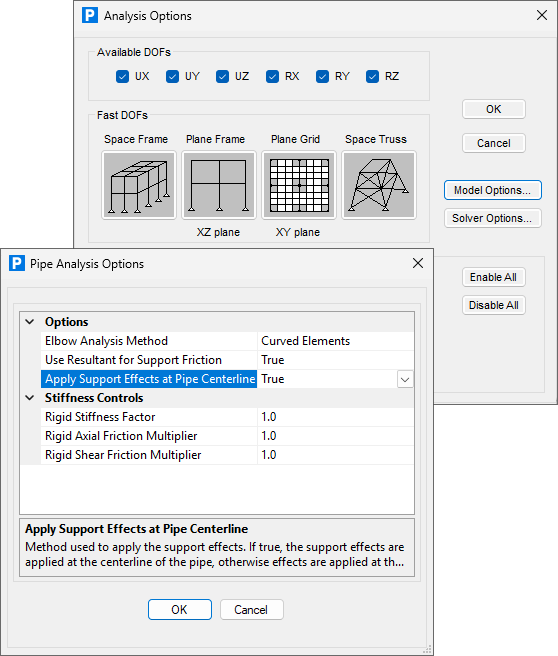

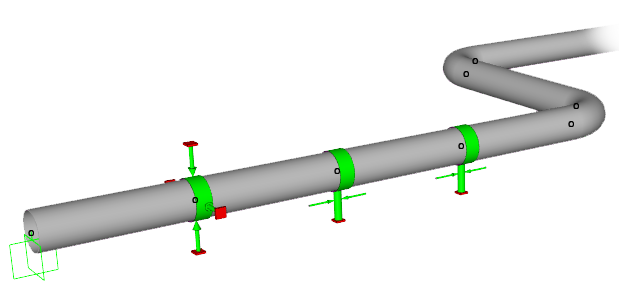

9.1.0_PLA_apply_effects_centerline

Support objects were enhanced to allow the user to apply the effects at the centerline of the pipe to which they are connected, rather than always applying the effects at the surface of the pipe.

Documentation

9.1.0_PLA_analysis_reference_manual

The CSI Analysis Reference Manual has been updated to include content for minor existing features that were previously only described in the Help and to improve the ability to search within the PDF file.

9.0.0

Released 14-Oct-2024

Release Notes

Piping Design

9.0.0_PLA_ASME_B31J_note3_tbl1-1

Handling of ASME B31J is enhanced, giving the ability to control when to apply Note 3 from Table 1-1. This is applicable when calculating the flex factors for 90 degree bends and elbows that match the thickness of the adjacent pipes.

9.0.0_PLA_large_aspect_ratio_components_B31J-2023

B31J – 2023 code enhanced to include a modification factor that accounts for large aspect ratio components.

9.0.0_PLA_ASME_B31.12-2023

ASME B31.12- 2023 has been added.

Drafting

9.0.0_PLA_tee_type_selection

Users can now select tees in the model based on the assigned tee type.

Cloud Sign-in Licensing

9.0.0_PLA_cloud_sign_in_lic

Cloud Sign-in licensing is now available

  1. • Access CSI software using secure user credentials — no more activation keys
  2. • Access licenses anywhere with internet access
  3. • Option to create License Groups to manage who has access to your licenses
  4. • Option to remotely terminate an active license session
  5. • Option to federate your identity provider (IdP), allowing users to use their familiar company credentials instead

Cloud Sign-in Licensing Details

8.1.0

Released 13-Oct-2023

Release Notes

Design

8.1.0_PLA_B31.3-2022_added

Design codes B31.3, B31.4 and B31.8 2022 have been added.

Loading

8.1.0_PLA_assign_ground_displacements_profiles

Ground displacement profiles can be assigned along distributed soil supports to simulate constant or varying ground settlement scenarios, particularly for buried pipelines.

Modeling

8.1.0_PLA_variable_length_auto_mesh

Assign variable-length auto meshing to pipe and frame objects to allow increased mesh refinement at features of interest while reducing mesh density where refinement is not required.

8.1.0_PLA_display_discrete_support

Graphically display the locations of discrete supports that are generated for distributed support assignments.

8.0.0

Released 24-Mar-2023

Release Notes

Piping Design

8.0.0_PLA_B31.1-2022_added

The B31.1 2022 design code has been added.

Drafting

8.0.0_PLA_slide_component_operation

A new Slide Component operation has been added which allows clicking and dragging an existing component along pipelines to a new location. The moved component’s assignments remain, and pipeline repair occurs as needed.

User Interface

8.0.0_PLA_txt_report

The text file report created when a CSiPlant model is exported has been enhanced to include more detailed information for each model element, as well as adding design properties, pressure and temperature loads, and components such as valves, flanges and reducers.

7.2.0

Released 8-Sep-2022

Release Notes

Piping Design

7.2.0_PLA_B31.8_2020_added

B31.8 – 2020 Design Code has been added, which includes an updated Tresca criterion when calculating combined stress for offshore piping.

7.2.0_PLA_B31.8_stress_calcs

Design with codes B31.8-2016 and B31.8-2016 2018 now performs a stress calculation to determine the contribution of pressure to the longitudinal stress.

7.2.0_PLA_B31.8_2020_added_image

7.2.0_PLA_GB-50251

GB 50251 – 2015 Design code has been added. This design code implementation includes restrained and unrestrained piping and the Appendix C method for considering circumferential stress in elbows.

7.2.0_PLA_apply_friction_factors

Individual design requests can apply multiplicative friction factors on all supports with Gap behavior, which can be used to study sensitivity to the friction properties.

Import and Export

7.2.0_PLA_export_all_model_data

The ability to export a text file representing all CSiPlant model data has been added with multiple formatting options.

User Interface

7.2.0_PLA_responsiveness

Responsiveness of the user interface has been improved for models with distributed supports with small stiffness factors which requires significant auto-meshing of members.

7.0.0 | 7.1.0

Released 7-Mar-2022

Release Notes

Piping Design

7.0.0_PLA_design_codes

Piping design has been implemented for the following ASME codes:
  1. B31.1-2020
  2. B31.3-2020
  3. B31.4-2019

Structural Model

7.0.0_PLA_expansion_joints

Expansion joints in pipelines can now be modeled. Types include single, hinge, and gimbal.

7.0.0_PLA_amer_alliance

Distributed soil supports can now be modeled along pipes that follow the recommendations by American Lifelines Alliance.

Loading

7.0.0_PLA_pulsation_loads

Pulsation loads due to reciprocating pumps and compressors can now be imported from BOSpulse as a time history load case.

Analysis

7.0.0_PLA_speed_improvements

Speed improvements have been made for nonlinear analyses that involve a large number of load patterns.

Graphics

7.0.0_PLA_time_history_animation

The time to create animations has been significantly decreased.

7.0.0_PLA_display_colors

Model objects can now be displayed by color based on object type, section property, material, pipe property set, pipeline, and group.

Drafting

7.0.0_PLA_rotate

A new command has been added to rotate model objects about any axis.

7.0.0_PLA_valves_component_weights

Valves assigned with concentric and eccentric component weights are now distinguished graphically.

7.0.0_PLA_replicate_&_mirror

Replicate and mirror commands now include the option to select points on the model for determining the offset distance.

Output and Display

7.0.0_PLA_customer_filters_table

Custom filters are now available for non-numeric columns in the display tables.

6.2.0

Released 15-Mar-2021

Release Notes

Drafting

CSiPlant 6.2.0 Drafting Enhancements

Smart drafting improvements now warn for conflicting flange/valve components and unintended support placement.

CSiPlant 6.2.0 Drafting Enhancements 1

Easily select from among multiple objects connected or overlapping at the same location.

CSiPlant 6.2.0 Drafting Enhancements 2

New replicate command speeds pipeline generation.

Output and Display

CSiPlant 6.2.0 Results Display and Output Enhancements 1

See what matters most. Hide internal objects in table displays.

CSiPlant 6.2.0 Results Display and Output Enhancements

Apply custom filters to table displays to quickly view specific results.

Import and Export

CSiPlant 6.2.0 External Import and Export Enhancements

Control the inclusion of support moments while exporting reactions to SAP2000.

Analysis

CSiPlant 6.2.0 Analysis Enhancements

Design cases have been streamlined, significantly reducing overall analysis time.

6.1.0

Released 30-Nov-2020

Release Notes

Modeling

CSiPlant 6.1.0 Structural Model Enhancements

Distributed Supports

Capture the behavior of continuously supported pipes and frames including buried pipelines. Supports can model nonlinear behavior such as softening, gaps and hysteresis.

Drafting

CSiPlant 6.1.0 Drafting Enhancements 2

Replicate and mirror frame and point objects along with their assigned properties and loads.

CSiPlant 6.1.0 Drafting Enhancements

Quickly assign flanges to ends of valves in a single operation.

CSiPlant 6.1.0 Drafting Enhancements 1

Draw objects with offsets measured from the elbow TIP and tee branch point.

Graphics

CSiPlant 6.1.0 Graphics Enhancements

Display Dimensions Graphically

Measure angles, lengths and areas directly in your model.

6.0.0

Released 21-Jul-2020

Release Notes

Design

CSiPlant 6.0.0 Design Enhancements 1

Design results can now be graphically viewed including the display of DCR values

CSiPlant 6.0.0 Design Enhancements

The 2018 version of the following design codes have been added: ASME B31.1, ASME B31.3, and ASME B31.8

Output and Display

CSiPlant 6.0.0 Results Display and Output Enhancements

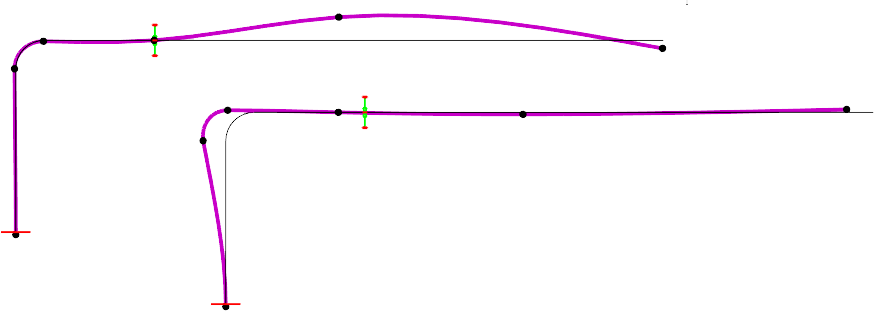

When viewing deformed shape, the option to see the undeformed wire frame is now available

Drafting

CSiPlant 6.0.0 Drafting Enhancements

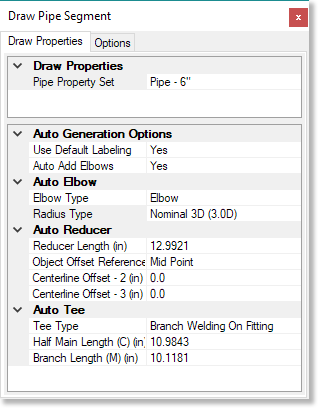

Previous selections in drafting menus are now preserved for faster modeling

User Interface

CSiPlant 6.0.0 User Interface Enhancements

Simplified options when displaying results to exclude intermediate load cases not directly used for design

CSiPlant 6.0.0 User Interface Enhancements 1

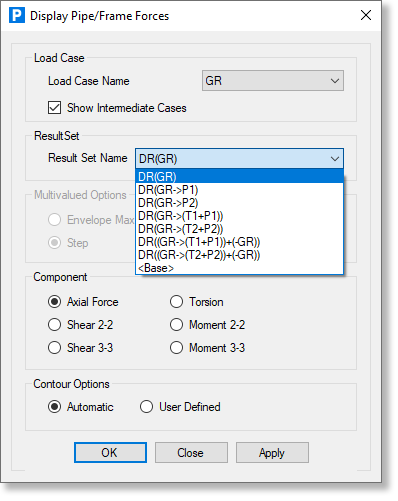

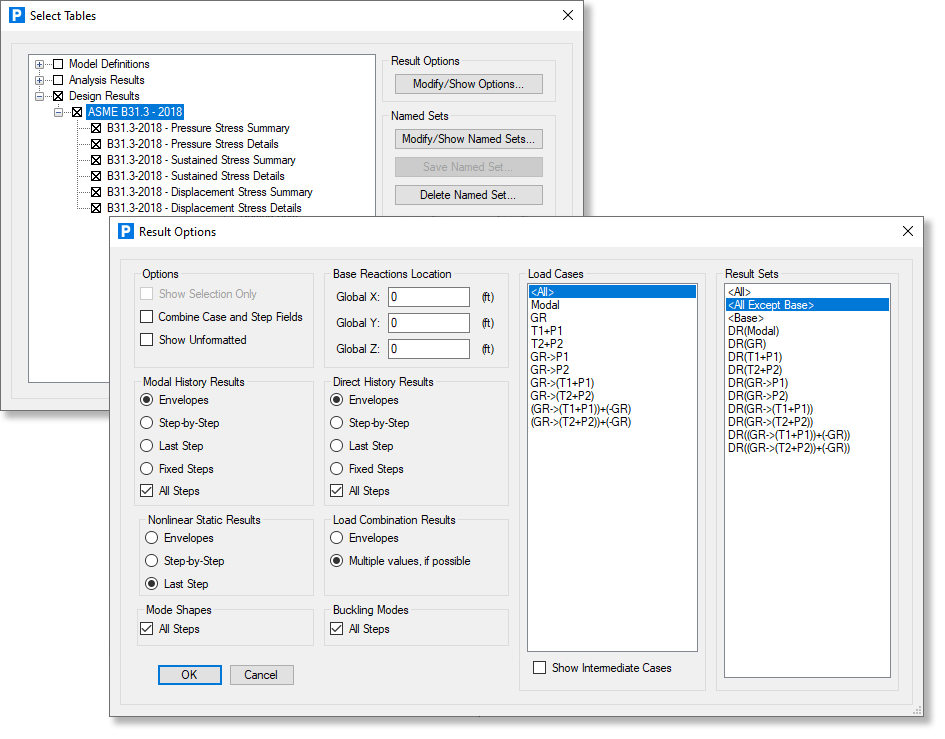

Results of intermediate load cases are now available through Show Intermediate Result options

CSiPlant 6.0.0 User Interface Enhancements 2

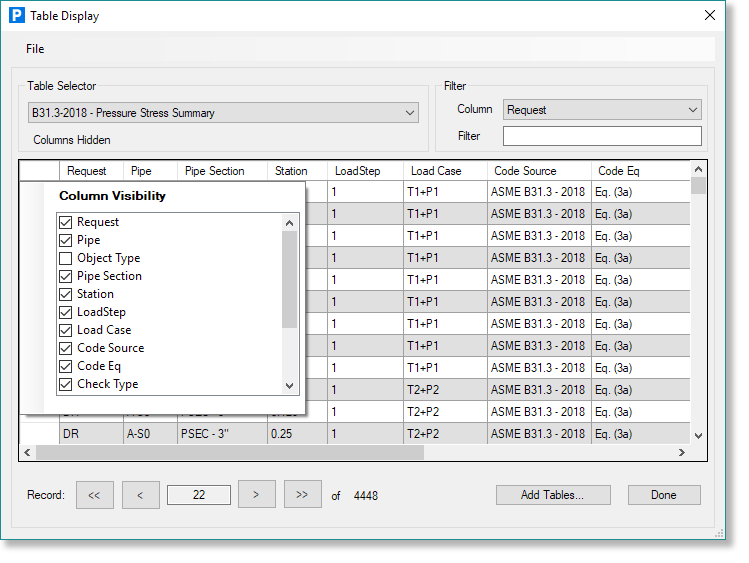

Table Output display enhanced to include ability to filter and show/hide

Analysis

CSiPlant 6.0.0 Analysis Enhancements

Calculation of friction forces has been enhanced for Line Stop, Vertical Stop, and Guide supports to include friction along the resultant direction of motion rather than separately in two orthogonal directions

5.2.0

Released 19-Mar-2020

Release Notes

Analysis

CSiPlant 5.2.0 Enhancements Analysis

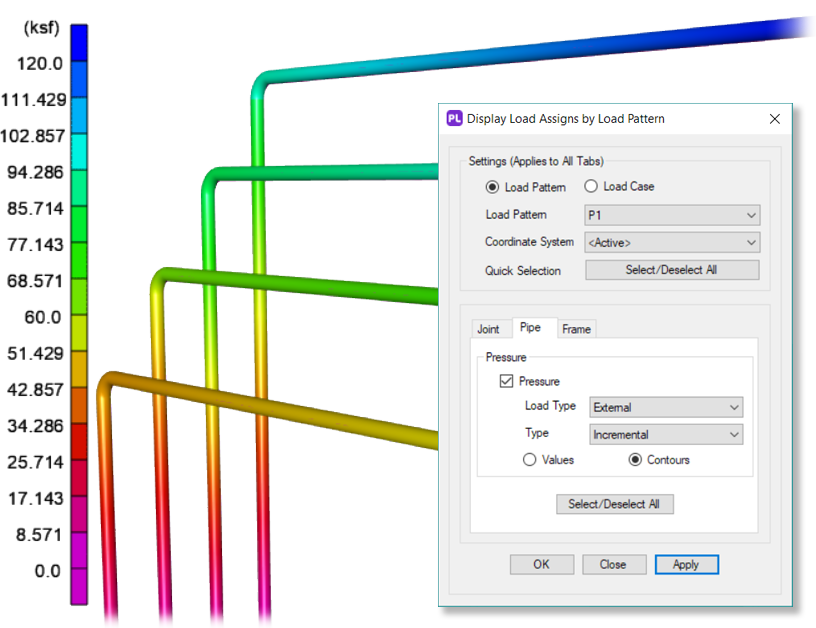

Added ability to apply external pressure

CSiPlant 5.2.0 Enhancements Analysis 1

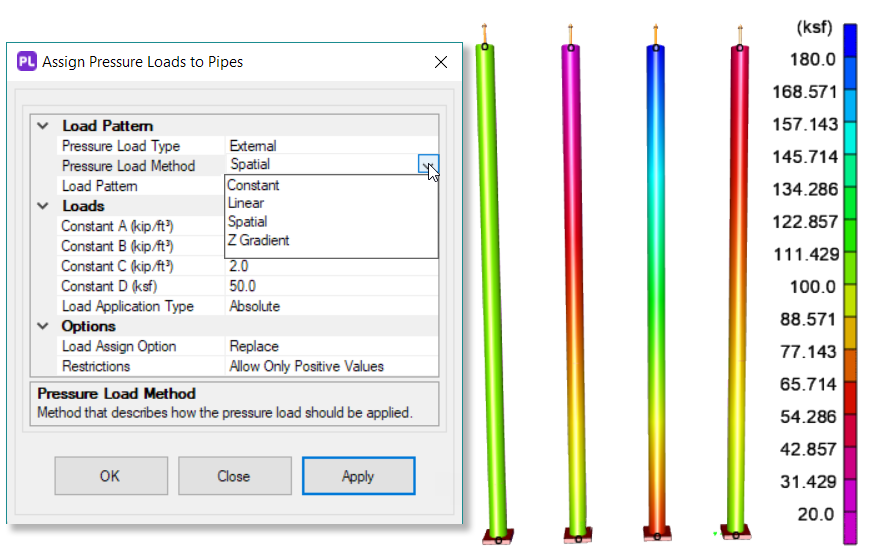

New pressure application types, such as Linear, Spatial, Z Gradient

Design

CSiPlant 5.2.0 Enhancements Design

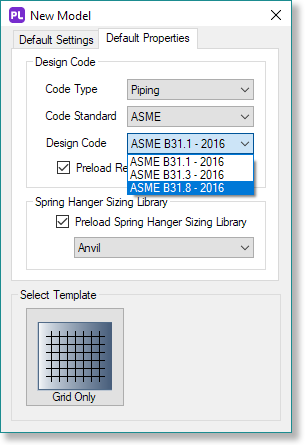

Added B31.8 2016 Design Codes with Collapse Check per API 1111

CSiPlant 5.2.0 Enhancements Design 1

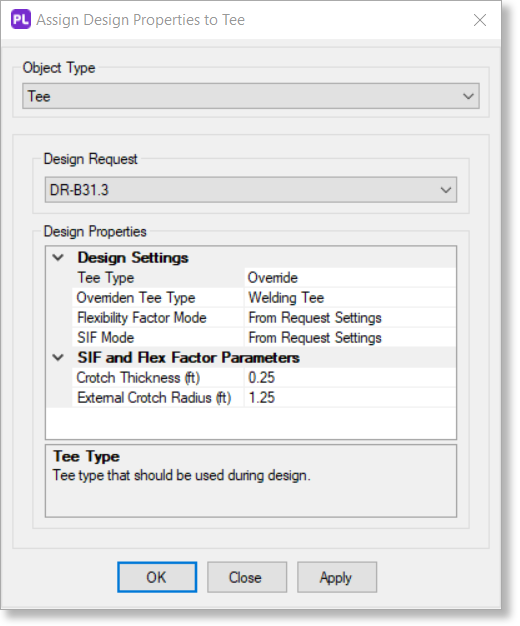

Bulk Assignment of Design Properties

CSiPlant 5.2.0 Enhancements Design 2

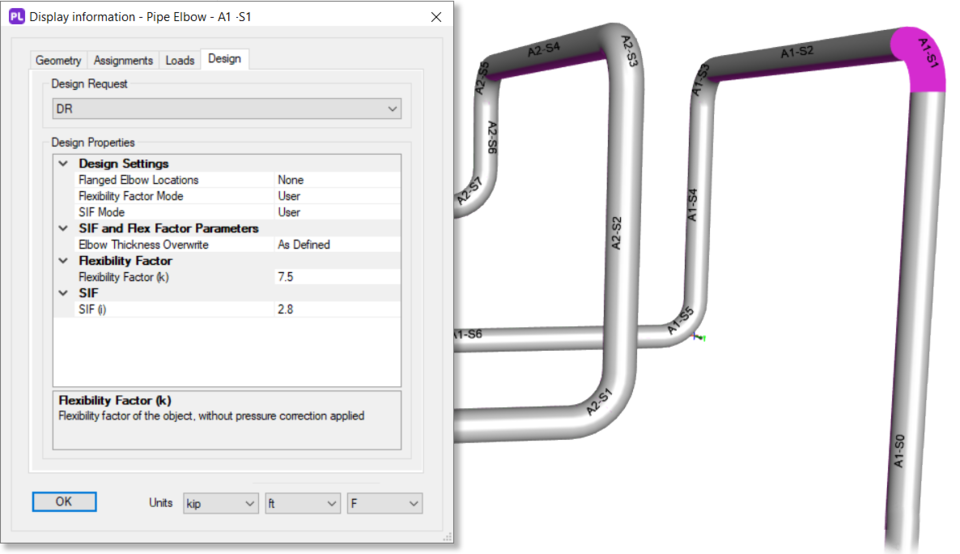

Custom Elbow/Flex factors for elbows

Import and Export

CSiPlant 5.2.0 Enhancements SAP2000 Compatibility

Import structural models and export support reactions between SAP2000 v22 and CSiPlant.

5.1.1 | 5.1.2

Released 4-Nov-2019

Release Notes

Loading

CSiPlant 5.1.1|5.1.2 Enhancements Loading

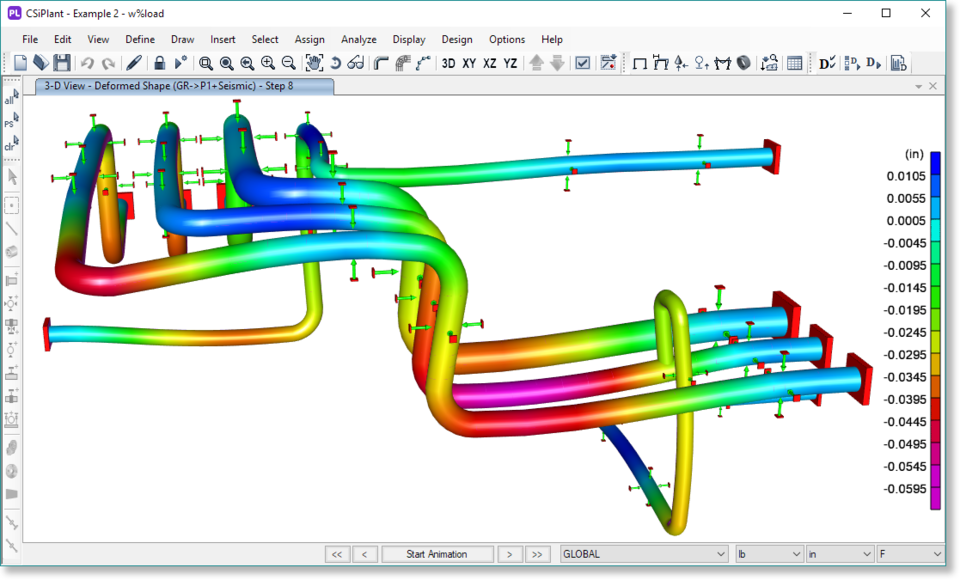

Load combinations can now produce step-by-step results in addition to envelope max/min values. Design can be performed step-by-step for these load combinations.

Output and Display

CSiPlant 5.1.1|5.1.2 Enhancements Graphics

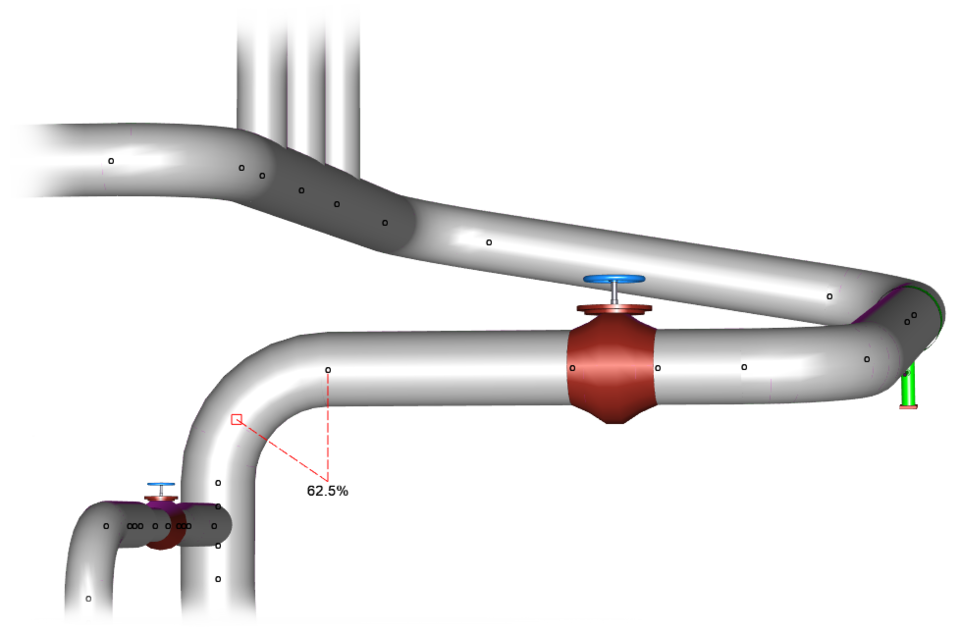

Enhanced snapping capabilities when drawing pipes and frames

Modeling

CSiPlant 5.1.1|5.1.2 Enhancements Modeling

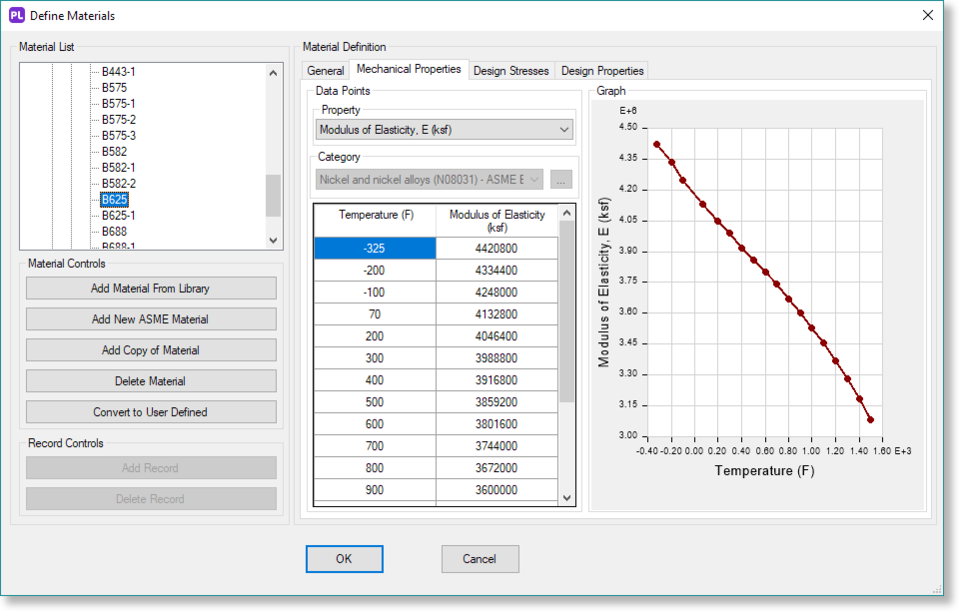

Material libraries expanded

5.1.0

Released 9-Jul-2019

Release Notes

Output and Display

CSiPlant 5.1.0 Enhancements Graphics

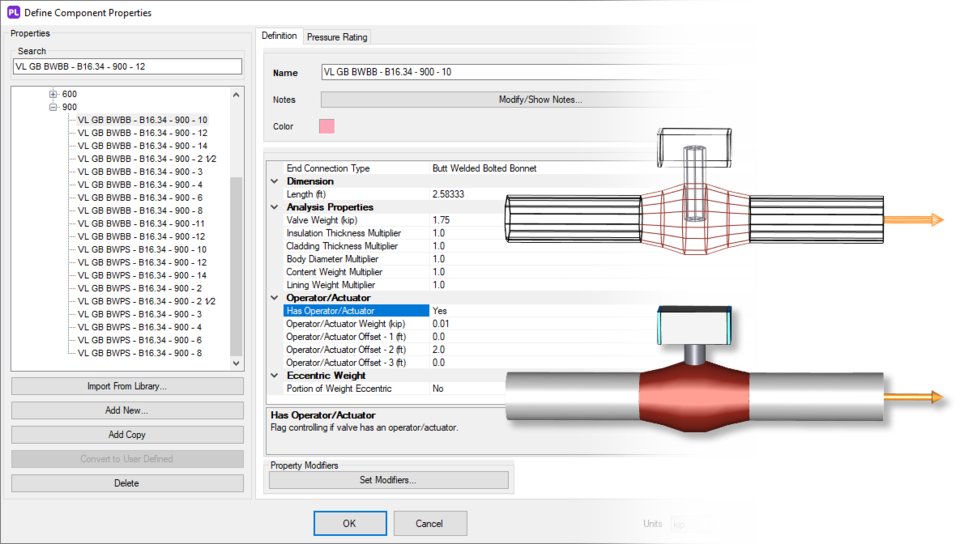

Valve operator graphics have been added

CSiPlant 5.1.0 Enhancements Results Display & Output

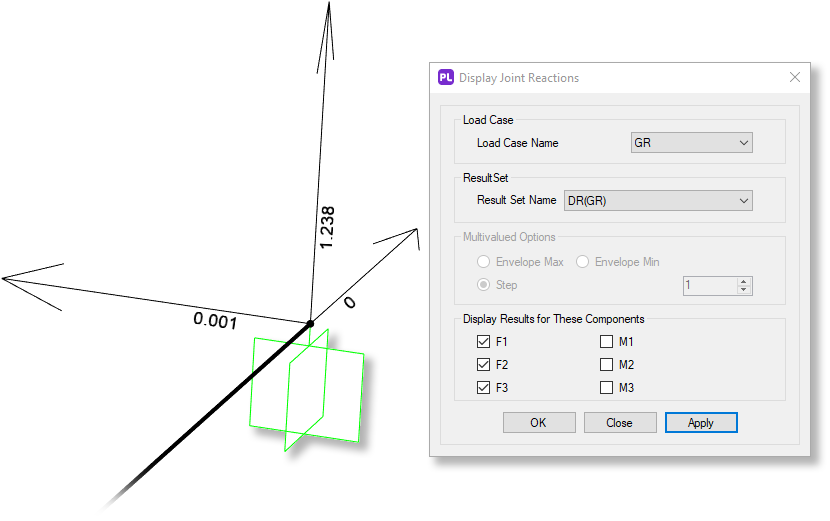

Ability to limit display of reactions for particular DOFs

CSiPlant 5.1.0 Enhancements Results Display & Output 1

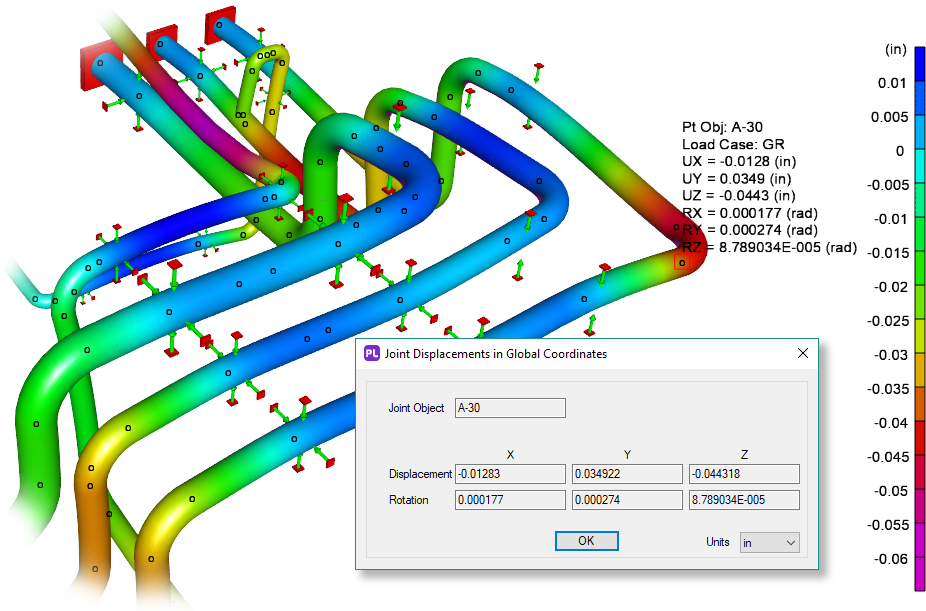

Joint displacements can be shown with a right click on any joint in the deformed shape model

CSiPlant 5.1.0 Enhancements User Interface

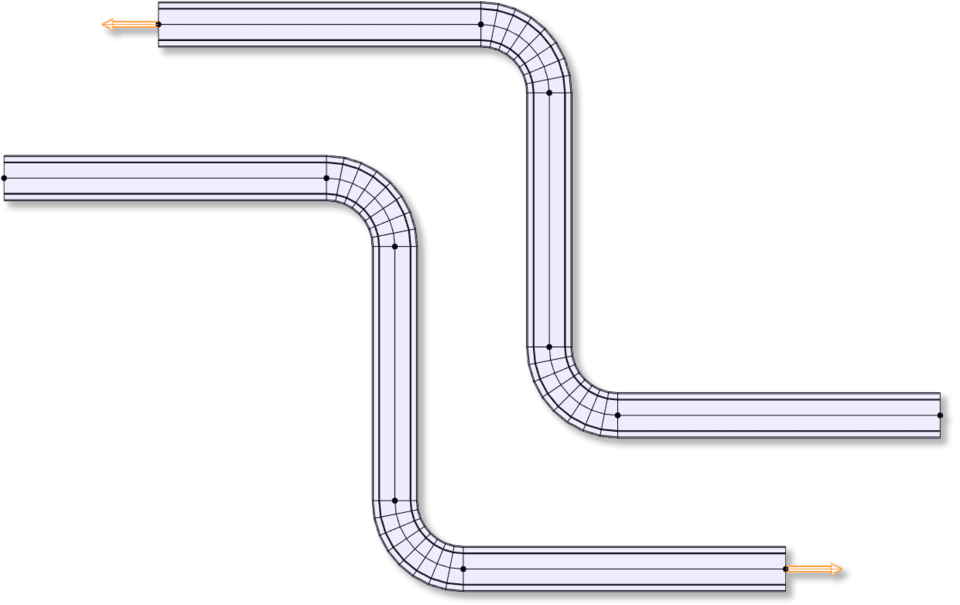

Reverse the flow direction of any pipeline

CSiPlant 5.1.0 Enhancements User Interface 1

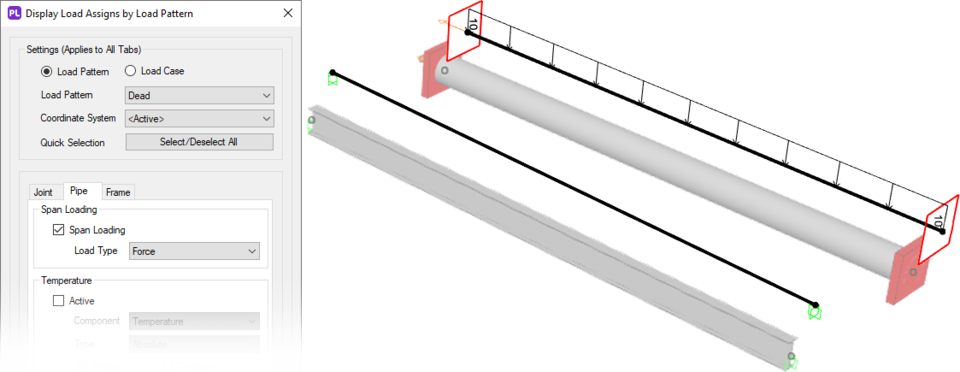

Pipe and frame loads can be displayed independently of each other

Import and Export

CSiPlant 5.1.0 Enhancements External Import/Export

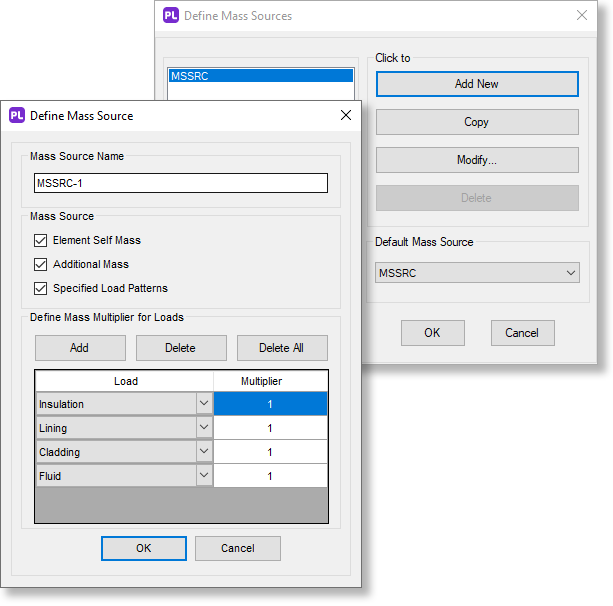

SAP2000 imported mass sources can be edited to include pipe properties such as insulation, lining, cladding and pipe content.

Design

CSiPlant 5.1.0 Enhancements Design

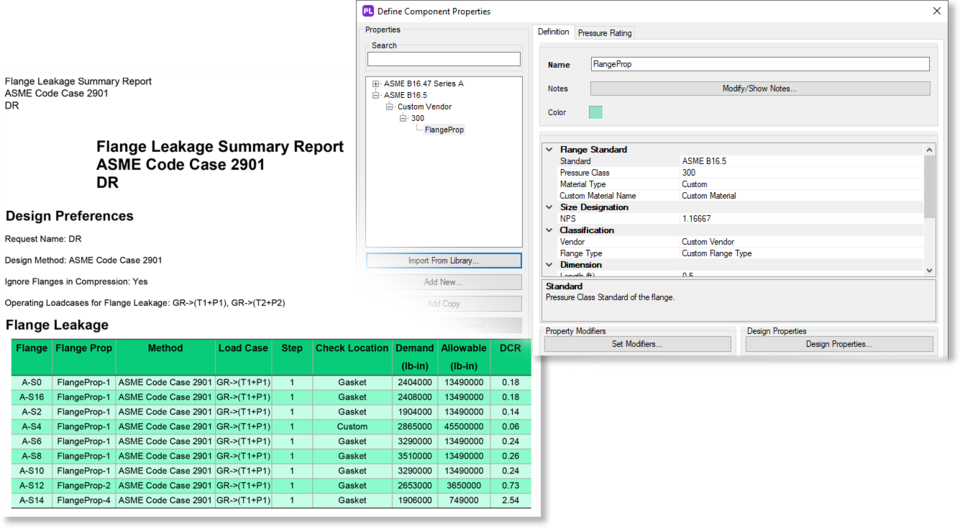

Flange leakage checks are incorporated into the design of piping
