Import and Export
20.0.0_xCAD_import_SAFE
CSiXCAD can now import models from SAFE, including detailed reinforcement for concrete beams and slabs.
20.0.0_xCAD_SAP_cold_formed_frame_obj
SAP2000 frame objects with cold-formed C, Z, hat, I, tee, angle, box, and pipe sections are now imported with matching CSiXCAD section profiles
Detailing
20.0.0_xCAD_BricsCAD_2023
CSiXCAD is now compatible with BricsCAD 2023.
Bug Fixes
20.0.0_xCAD_bug_fixes
Issues reported by users have been corrected.
Import and Export
19.3.0_XCAD_zwcad_2023
Support for ZWCAD® 2023 has been added.
Import and Export
19.2.0_XCAD_autocad_2023
Support for AutoCAD® 2023 has been added.
19.2.0_XCAD_bricscad_22
Support for BricsCAD® v22 has been added.
Import and Export
19.1.0_XCAD_zwcad
- Support for ZWSoft® ZWCAD® v2021 and v2022 has been added.
- Support for AutoCAD® 2022 has been added.
Detailing
19.1.0_XCAD_beamline_reinforcement
A new command has been implemented that creates concrete beamline reinforcement elevations and lays these out on new sheets.
Import and Export
19.0.0_XCAD_BricsCAD
Support for BricsCAD® v21 has been added to existing support for BricsCAD v20 as well as AutoCAD® 2020 and 2021.
19.0.0_XCAD_curved beams
Curved steel beams can now be imported from SAP2000 and ETABS.
19.0.0_XCAD_exploded
The export of exploded drawings has been enhanced and expanded.
19.0.0_XCAD_nonprismatic
Nonprismatic members can now be imported from SAP2000.
Cloud Licensing
19.0.0_XCAD_licensing_cloud
Cloud-based licensing is now standard for CSiXCAD.
- • Cloud-based server requires no setup
- • Access licenses outside of company networks and VPNs
- • Share licenses between users (non-simultaneous)
- • Check-out a license to work offline
- Cloud FAQ
Detailing

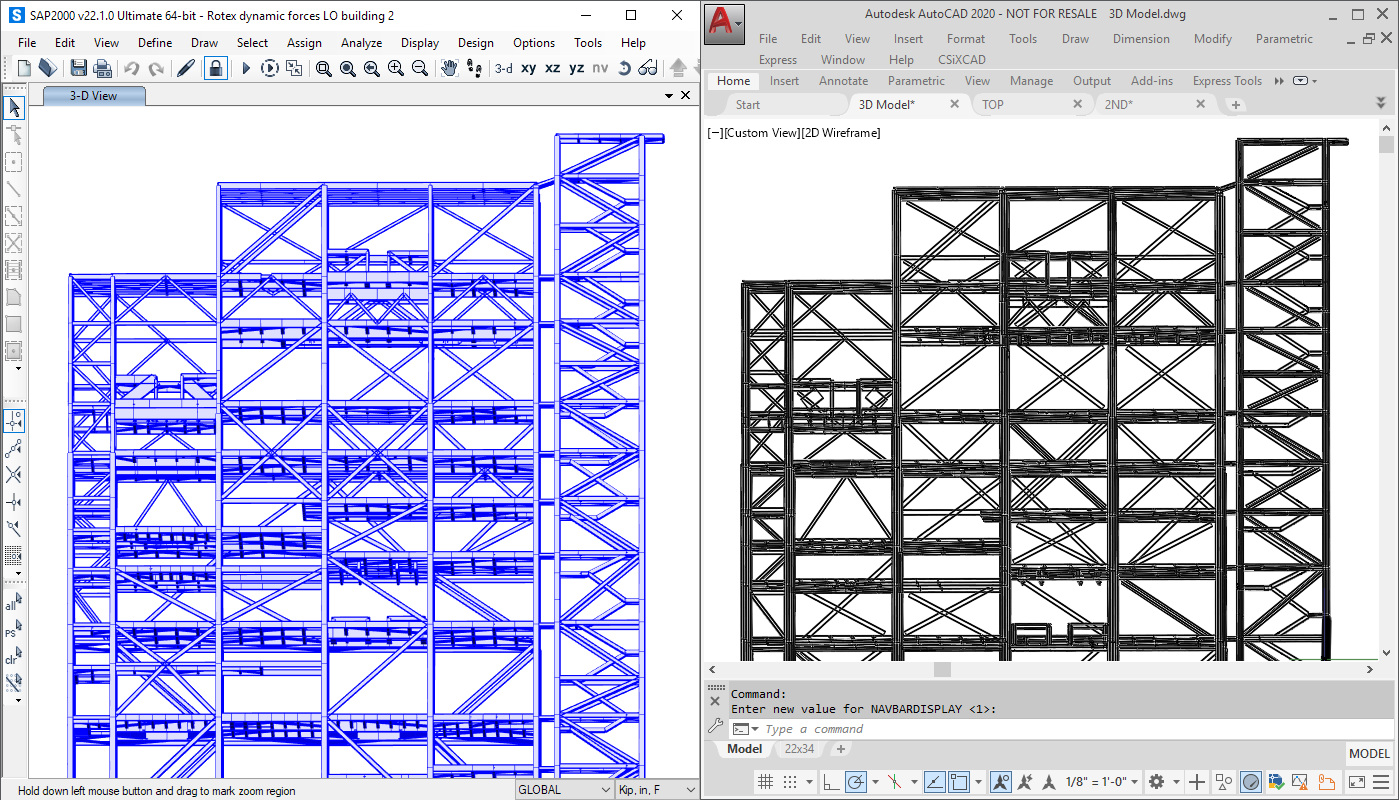

18.1.0_XCAD_sap2000
Models analyzed and designed in SAP2000 can now be imported into CSiXCAD. This provides a comprehensive detailing solution for steel structures modeled in SAP2000.
